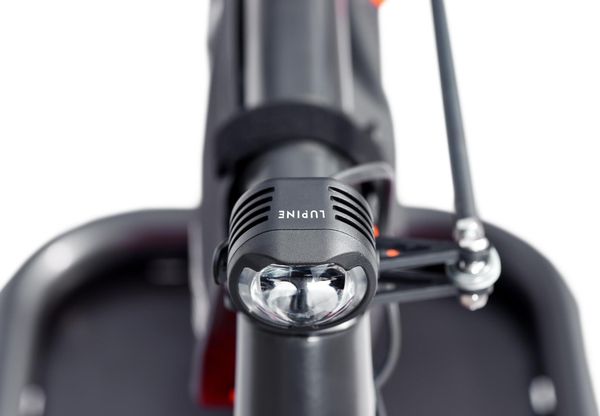

Lupine SL F Lastenrad

Technologies and manufacturing processes

• Our SL with broadly defined illumination

  Defines precision in form and function as lighting for modern e-bikes: Our SL F combines sensor-controlled daytime running light, glare-free low beam and powerful high beam in a precision-manufactured housing made of anodized CNC aluminium. Each component is designed for maximum efficiency, durability and lighting quality.

• Strong low beam and balanced light characteristics

  The integrated daytime running light of the SL F for e-bikes ensures constant visibility in all light conditions. The low beam with a clear cut-off line and a full 900 lumens ensures consistent and safe illumination in road traffic. For maximum visibility, the high beam with its 1,300 lumens extends the field of vision far to the front and across the width. A range of up to 210 meters offers full control on unlit roads, outside built-up areas, downhill runs and trails. The light characteristics of the SL F are balanced and natural. The precisely tuned Dual Aspheric Lens System distributes the light evenly at close and long range and creates a homogeneous, high-contrast carpet of light. Compared to the compact SL Nano, the SL F offers significantly wider and brighter illumination, providing greater safety and orientation, especially at higher speeds and in changing light conditions.

• Ideal addition for every high-quality e-bike

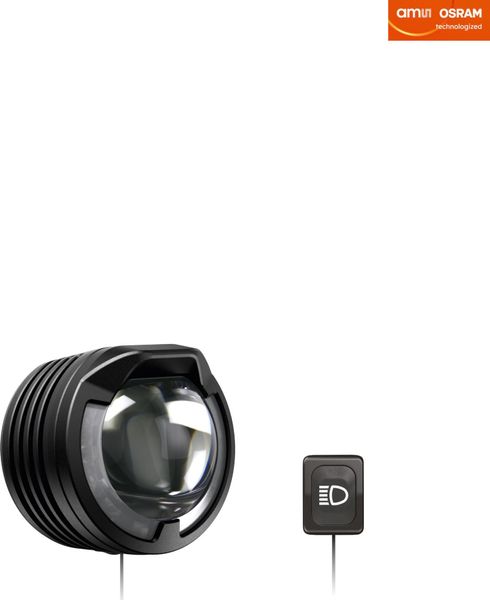

  The housing is made of anodized 6061-T6 aluminium and complies with protection classes IP67 and IK09, making the SL F for e-bikes protected against dust, water and moisture and suitable for demanding operating conditions. It is controlled via a remote control with a color LED display that signals the active light mode. Extensive compatibility with common e-bike drive systems such as Bosch, Brose, Shimano and Yamaha is of course guaranteed.

• Wide range of applications and versatile mounting options

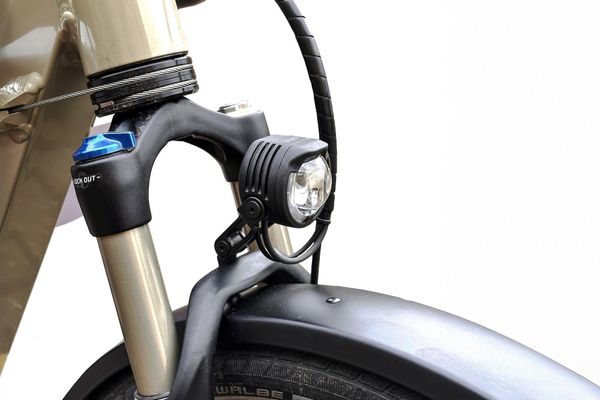

  Thanks to its versatile light characteristics, the SL F is equally suitable for e-city and urban bikes, light e-MTBs and e-trekking bikes. The glare-free low beam ensures clear visibility in city traffic, while the high beam provides wide, broad illumination on trails and country roads. Several mounting options are available for different e-bike types: the robust, two-part handlebar clamp made of CNC-milled aluminum, the compact Classic Mount variant for fork bridge mounting as well as an optional GoPro adapter and the Flexmount holder for individual positioning. All variants combine stability, functionality and a sophisticated design.
